Verified Material Grade
SS 304 or SS 316 and SS 316L on all product contact surfaces, backed by mill test certificates issued in your company name.

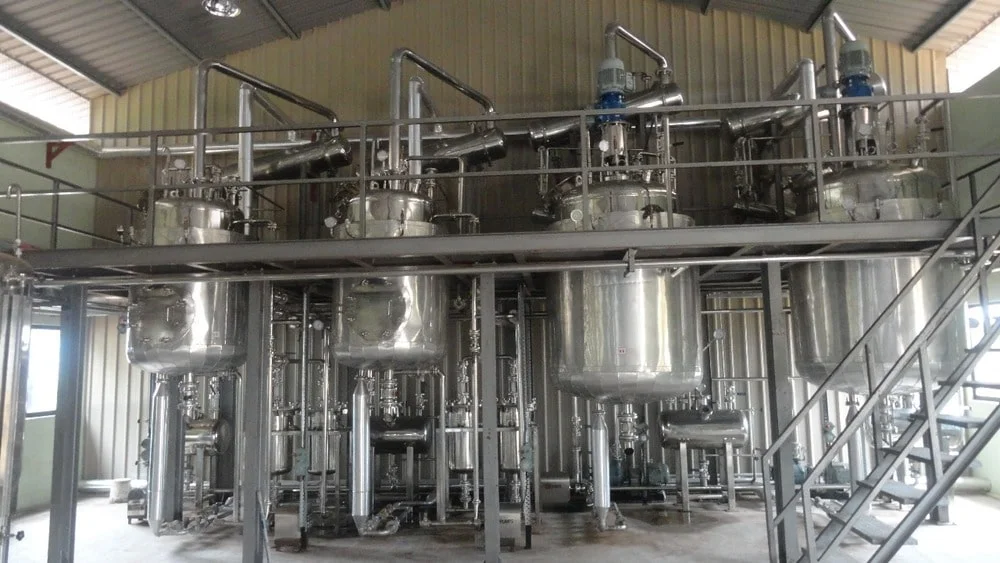

Shilajit Extraction Plant in Haryana
Mecha Engineering fabricates stainless steel shilajit extraction plants at its Saharanpur works and installs them at contract manufacturers and wellness brands across Haryana. Low temperature aqua extraction, multi-stage filtration and vacuum concentration, sized from 100 litre pilot units to full commercial lines.
- Fulvic acid protected
- Multi-stage filtration
- SS 304 and SS 316 build
- Resin or powder output
- PLC and HMI option
100 LSmallest pilot vessel
5 kLLargest single extractor
4 to 12Weeks to delivery
22Districts served
Shilajit Extraction Plant Manufacturer in Haryana
Haryana is the shortest run we make. Yamunanagar and Jagadhri are under an hour from our Saharanpur works, Karnal, Kurukshetra and Ambala are a morning's drive, and Sonipat, Kundli, Panipat, Bahadurgarh, Gurugram and Faridabad are a same day dispatch. For a Haryana buyer that means site visits before the order, trials during the build and service calls afterwards are all practical rather than theoretical.
The demand here is mostly brand side. Gurugram holds a large share of India's direct to consumer wellness brands, and their production usually sits on a contract floor at Sonipat, Kundli, Panipat or Bahadurgarh. The buyer is often a brand owner rather than an engineer, so as a leading manufacturer of shilajit extraction plant in Haryana we spend the first call on what the pack has to claim, then work backwards to the vessel, the filtration train and the controls.
- Actives survive the process. The whole line is built to stay below the temperature at which fulvic acid and the mineral fraction start to degrade.
- Next door to the works. Saharanpur to Yamunanagar is under an hour and to Gurugram or Sonipat a same day run, so freight is minor and an engineer can be on site quickly.
- Brand owners welcome. You do not need to arrive with a process sheet. Tell us what the label has to say and we will write the specification with you.
- Audit ready paperwork. MOC certificates, GA drawings, weld and polish records and IQ or OQ documents go with the plant.
What you get with every plant
Four Commitments Behind Each Haryana Installation
These are the points Haryana buyers check before releasing a purchase order, so we put them in writing rather than in a brochure line.
Trial Before Dispatch
Water run, vacuum hold and leak test at our Saharanpur shop. Send a raw shilajit sample and we run a yield trial before the plant leaves.
Installation by Our Team
Erection, piping tie-in, utility connection, commissioning and operator training at your Haryana site, covered in the supply scope.
Direct Manufacturer Pricing
You buy from the fabricator, not a trading house. No dealer margin, and any design change is quoted against actual material and labour.
Build features
Features of Mecha Engineering Shilajit Extraction Plants:
Every feature below exists to protect one of two things: the bioactive fraction in your raw material, or the hours your operator spends on a batch.
01
Advanced Filtration System
Multi-stage filtration separates sand, rock grit and insoluble matter from the dissolved fraction, so what reaches the concentration stage is clean enough for pharmaceutical grade output rather than needing a second correction pass.
02
Temperature-Controlled Processing
Jacketed heating with a PT100 sensor in the liquid holds the set point through the whole extraction cycle. Fulvic acid, humic fraction and the mineral content keep their profile instead of degrading at the vessel wall.
03
High Yield Efficiency
Staged soaking, controlled agitation and a second wash on the residue pull the maximum resin out of the raw material with minimal waste. Less raw shilajit per kilo of finished resin is where the return on the plant shows up.
04
Fully Automated Workflow
Programmable controls handle extraction timing, temperature ramps and safety interlocks, with batch logging on the HMI. Batch to batch consistency stops depending on which operator is on shift.
05
Vacuum Concentration Without Heat Damage
Water is pulled off under vacuum at a low boiling point, so the extract thickens to resin consistency without ever seeing the temperature that flat evaporation would need.
06
Hygienic and Cleanable Build
Internal 220 grit mirror finish, coved corners, CIP spray ball and a bottom flush outlet. Changeover and washdown are a short job rather than a shift, which matters on a multi-product floor.
Systems we supply
Shilajit Plant Range for Haryana Processors:
Buy the full line, or add the one stage you are missing. Send your process sheet and we will tell you which of these fits.
Aqua Extraction Vessel
The core unit. Jacketed SS vessel with anchor agitation, temperature control and a bottom strainer, where raw shilajit is dissolved in purified water at controlled temperature.
Suits every shilajit line, pilot to commercial
Multi-Stage Filtration Skid
Coarse basket, bag filter, sparkler or cartridge filter in sequence, with a transfer pump between stages. This is the stage that decides your final clarity and grit level.
Suits units correcting a purity complaint
Vacuum Concentration Unit
Vacuum evaporator with condenser, receiver and vacuum pump, taking the filtered liquid down to a thick, pourable concentrate at low temperature.
Suits resin makers protecting fulvic acid
Resin Finishing and Filling Line
Final moisture reduction, holding kettle with slow stirrer and a filling arrangement for jars, so the resin leaves at a consistent viscosity instead of setting in the vessel.
Suits brands packing retail resin jars
Spray Dryer for Shilajit Powder
Where the output has to be a free flowing powder for capsules, tablets or gummies, the concentrate is spray dried with or without a carrier at a controlled inlet temperature.
Suits capsule and supplement manufacturers
Shilajit Pilot Plant
A 100 or 250 litre version of the same line for R and D, sample lots and buyer trials, built so the recipe you prove on it scales to the commercial vessel without rework.
Suits new entrants and export sampling
Technical data
Shilajit Extraction Plant Specifications:
Standard build for an aqua extraction line. Every line below is changed to order, so treat this as the starting point for your enquiry rather than a fixed model list.
| Parameter | Standard offering | Options on request |
|---|---|---|
| Vessel Capacity | 100, 250, 500, 1000, 2000 and 3000 litres | Up to 5,000 litres, and multi-vessel batteries |
| Extraction Medium | Purified water, single or double stage soak | Hydro-alcoholic wash for specific marker profiles |
| Material of Construction | SS 304 shell, SS 304 contact parts | SS 316 or SS 316L contact parts for export and GMP duty |
| Internal Finish | 220 grit mirror polish, around 0.4 micron Ra | Electropolished finish for pharma duty |
| Heating Arrangement | Limpet coil or dimple jacket, steam or electric | Thermic fluid, or hot water circulation for tighter low temperature control |
| Operating Temperature | Ambient to 60 degrees Celsius on the extraction stage | Programmed ramp and hold profile through the PLC |
| Agitation | Anchor stirrer with scraper, geared motor, top entry | VFD speed control, bottom entry magnetic drive |
| Filtration Train | SS mesh basket, bottom strainer and bag filter | Sparkler filter press, cartridge housing, membrane or ultrafiltration stage |
| Concentration Stage | Vacuum evaporator with shell and tube condenser | Thin film or wiped film evaporator, multi-effect arrangement |
| Vacuum System | Water ring vacuum pump with receiver | Oil sealed pump, chilled water condenser, vent condenser |
| Final Output Form | Thick resin at controlled moisture | Spray dried free flowing powder, or granules |
| Insulation and Cladding | 50 mm mineral wool under SS 304 cladding | Higher thickness where hot utilities are used |
| Control System | Local panel with temperature indicator and timer | PLC with HMI, recipe storage, batch report, SCADA link |
| Documentation | GA drawing, MOC certificate, test report, manual | DQ, IQ, OQ protocols, weld map, polish and pressure records |
Scroll the table sideways on a mobile screen. Send your raw material grade, batch size and target output form and we will fill this sheet in against your process.
Choosing a configuration
Which Shilajit Line Fits your Haryana Unit?
The output form and the buyer's specification decide the plant, not the other way around. This is the shortlist we work through with a Haryana buyer on the first call.
| Configuration | Core stages | Output | Typical Haryana buyer |
|---|---|---|---|
| Basic Aqua Extraction | Extraction vessel and basket filtration | Filtered liquid for onward processing | Small ayurvedic units in Ambala and Karnal |
| Purification Line | Extraction with multi-stage filtration skid | Clarified extract, grit and insolubles removed | Units answering a grit or clarity complaint |
| Resin Line | Extraction, filtration and vacuum concentration | Thick shilajit resin at controlled moisture | Direct to consumer brands based in Gurugram |
| Powder Line | Resin line plus spray dryer | Free flowing powder for capsules and tablets | Capsule and gummy makers at Sonipat and Kundli |
| Export Grade Line | Full line with PLC, batch logging and SS 316 | Resin or powder with batch records and COA | Contract floors serving overseas brand owners |
| Pilot and R and D | 100 to 250 litre version of any of the above | Sample lots and trial batches | New Gurugram brands before first production run |
| Stage Addition | One unit added to an existing hall | Whichever stage is currently the bottleneck | Contract manufacturers in Panipat and Bahadurgarh |
Not sure which row you belong to? Share your raw material source and the specification your buyer audits, and we will confirm the configuration along with an indicative yield range.
How the plant runs
The Shilajit Extraction Cycle, Step by Step
Six stages from raw exudate to finished resin or powder. Your operator sees the same sequence on every batch, which is what keeps the output consistent.
01
Raw Material Sorting
Incoming raw shilajit is graded, loose rock and visible foreign matter are removed, and the lot is broken down so it dissolves evenly instead of in lumps.
02
Charging and Soaking
Material goes into the extraction vessel with measured purified water. The soak runs to a set ratio and time so every batch starts from the same baseline.
03
Controlled Temperature Extraction
Jacket heating holds the batch at the low set point while the agitator keeps the solids in suspension. The soluble fraction goes into the water, the rock does not.
04
Multi-Stage Filtration
The liquid passes through basket, bag and fine filtration in sequence. Grit, sand and insoluble matter drop out stage by stage rather than all at once.
05
Vacuum Concentration
Water is removed under vacuum at low temperature until the extract reaches resin consistency. Condensate collects in the receiver and is drained off.
06
Finishing and Packing
Output is held at the target moisture and filled as resin, or sent forward to the spray dryer where a free flowing powder is required.
Where these plants are used
Application Areas of Shilajit Extraction Plants:
Ayurvedic and Pharma Manufacturing
Classical rasayana preparations, shilajit vati and combination formulations. AYUSH and GMP units ask for SS 316 contact parts and IQ or OQ documentation.
Nutraceutical and Supplement Units
Capsule, tablet and gummy makers who have to hold a declared fulvic acid percentage batch after batch, usually with PLC batch logging behind it.
Retail Resin Brands
Direct to consumer jars where texture, colour and purity are what the customer judges, so filtration and moisture control carry the whole product.
Export and Contract Manufacturers
Units shipping to the US, Gulf and European markets, buying for traceability, heavy metal control and a document set a third party auditor will accept.
Bulk Extract and Ingredient Suppliers
B2B suppliers selling standardised shilajit extract to formulators, who need volume and a consistent marker level rather than retail packing.
Direct to Consumer Wellness Brands
Gurugram brand owners bringing production in-house, where the plant has to deliver the exact texture, colour and claim the pack already promises.
Supply and service network
Our Shilajit Extraction Plant Network Across Haryana
Dispatch and site service run out of Saharanpur to all 22 districts of Haryana. These are the locations we work in most often.
- Gurugram
- Faridabad
- Sonipat
- Kundli
- Panipat
- Karnal
- Ambala
- Yamunanagar
- Jagadhri
- Kurukshetra
- Kaithal
- Rohtak
- Jhajjar
- Bahadurgarh
- Rewari
- Dharuhera
- Manesar
- Bhiwani
- Hisar
- Sirsa
- Fatehabad
- Jind
- Narwana
- Palwal
- Nuh
- Mahendragarh
- Charkhi Dadri
- Panchkula
- Barhi
- Samalkha
Location not on the list? The list is only where we have worked most recently. Site visits, erection and after-sales service cover every district in Haryana, plus neighbouring Punjab, Uttar Pradesh, Rajasthan, Himachal Pradesh, Uttarakhand and Delhi NCR.
Questions we are asked
Shilajit Extraction Plants in Haryana: FAQs
Straight answers to what Haryana buyers ask before and after a site visit.
Who manufactures shilajit extraction plants in Haryana?
Mecha Engineering Pvt. Ltd. designs and fabricates shilajit extraction plants at its own works at Village Meharbani on Behat Road, Saharanpur, Uttar Pradesh, and supplies them across Haryana. The company was set up in 2022 and builds extraction, filtration, drying and process equipment for pharmaceutical, ayurvedic, nutraceutical, food and cosmetic units throughout India and for export.
How does the plant protect fulvic acid content?
Two ways. The extraction stage runs as a low temperature aqua process with a PT100 sensor in the liquid and jacket control holding the set point, so the batch never overshoots. The concentration stage is done under vacuum, which lowers the boiling point and takes the water off without the heat load that open evaporation would need. Send a sample and we can run a trial batch before dispatch so you see the retained value on your own material.
What capacity range can you supply for a Haryana plant?
Single vessels run from 100 litres for pilot and R and D work up to 5,000 litres for commercial lines, with multi-vessel arrangements where throughput demands it. Tell us the daily raw shilajit quantity you want to process and the output form you sell, and we work backwards to the vessel size and the number of batches per shift.
Can the plant give me resin and powder from the same line?
Yes. Extraction, filtration and vacuum concentration are common to both. Resin is drawn off at the end of concentration at a controlled moisture level, while powder needs a spray dryer added after that stage. Most units start with the resin line and add the dryer once capsule or tablet orders justify it, so we size the concentration stage for that addition from day one.
Which material grade do you use, and can I get certificates?
The standard build uses SS 304 for the shell and product contact parts. SS 316 and SS 316L are used where a pharma or export audit requires it. Mill test certificates for every plate and pipe are issued in your company name and handed over with the plant along with the GA drawing and test report.
How many filtration stages do I actually need?
It depends on your raw material and your buyer. A clean, well sorted lot going into a domestic ayurvedic formulation may pass on basket and bag filtration alone. A retail resin jar or an export lot usually needs a sparkler or cartridge stage after that, and some buyers ask for a membrane stage. We quote the filtration skid as a separate line item so you can see what each stage costs before you commit to it.
Is installation and commissioning included for Haryana sites?
Yes, and Haryana is the easiest state on our list to service. Erection, piping tie-in, utility connection, water trial, the first shilajit batch and operator training are all part of the supply scope, and because Saharanpur is close an engineer can usually reach a Haryana site the same day. That also means later service calls, spare fitting and recipe changes do not turn into week long waits.
What documentation is provided for AYUSH, GMP or export audits?
Standard handover covers the general arrangement drawing, material of construction certificates, hydro and vacuum test reports, weld and polish records, the operating and maintenance manual and a spare parts list. DQ, IQ and OQ protocols, along with a validation document set, are prepared on request for GMP and export buyers.
How long does delivery take, and what does freight to Haryana cost?
Standard vessels ship in 4 to 8 weeks from order confirmation and full turnkey lines take 10 to 12 weeks. Freight is one of the smallest line items on a Haryana order because the distance is short, and it is quoted at actual cost. For larger vessels we still arrange the trailer, route survey and unloading crane so nothing waits at your gate.
Can you upgrade a shilajit line I already have on site?
Yes. Common jobs include adding a filtration skid to a plant that is only using a basket strainer, adding vacuum concentration to a unit still evaporating in open kettles, replacing an agitator and gearbox, adding a PLC panel to a manual line, and repolishing an internal surface that has lost its finish. Send photographs and a nameplate reading to start.
We are a brand, not a manufacturer. Can you help us set up from nothing?
Yes, and that is a common starting point in Gurugram. We begin from what your pack has to claim, work back to the extraction, filtration and concentration stages that deliver it, and give you a layout with utility loads so you can size the space and the power connection. What we do not do is design your factory approvals or your licensing, so plan for a consultant on that side alongside the equipment.
How do I get a price for my plant?
Call +91-9084351006 or +91-7500378000, send a WhatsApp message, or email info@mechaengg.com with four details: the raw shilajit grade and source, the batch quantity in kilograms, the output form you want, and whether you need PLC controls and export documentation. A specification sheet and price come back within one working day.
Talk to the specialist
Get Your Haryana Shilajit Plant Quoted This Week
Share the batch size, what the pack has to claim and the output form you sell. Our Saharanpur engineering team returns a specification sheet, layout drawing and delivered price for your Haryana site so you can compare on paper rather than on promises.
